DOUBLE EDGER PRODUCTION LINE

玻璃直线快速双边机生产线 KST系列

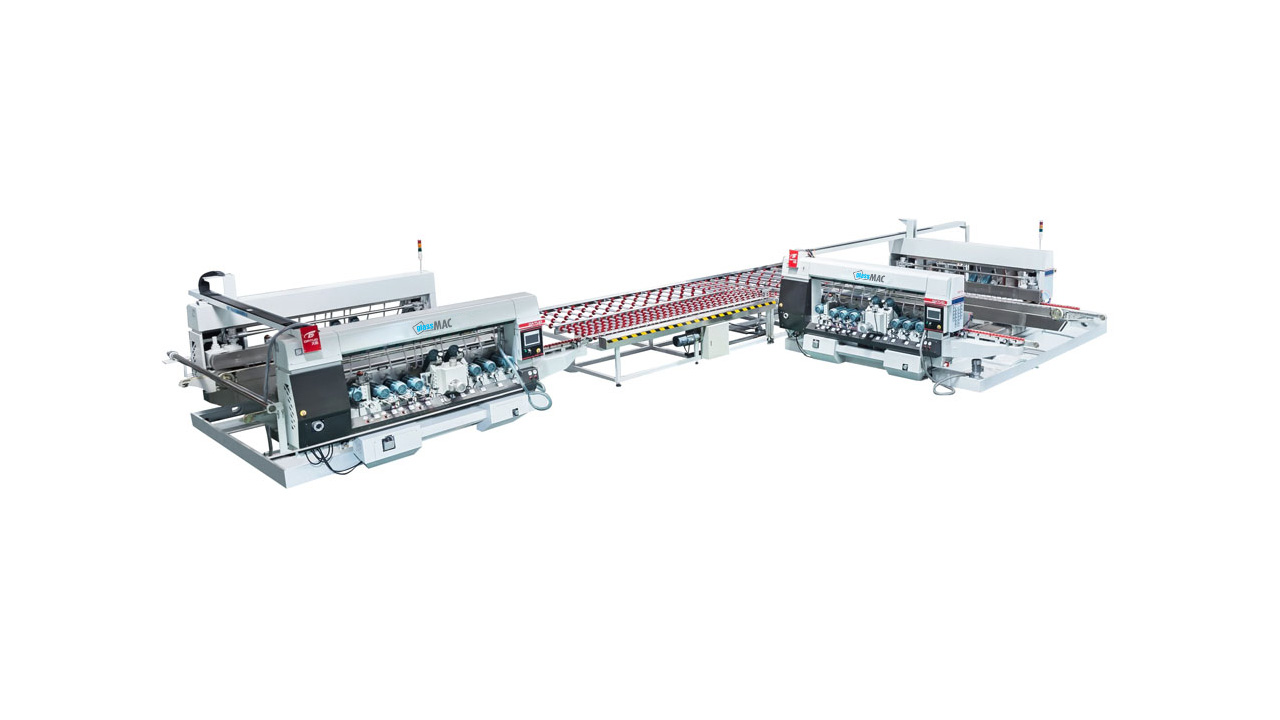

Glass Straight-line Fast Speed Double Edger Production Line KST series

KST22-4225生产线由一台自动检测台,一台KS2242玻璃直线双边磨边机,一台KS2225玻璃直线双边磨边机及一台自动中转台组成。采用PLC控制系统,既可以单机操作,又可以连线运行。该生产线性能稳定,生产效率高,可一次完成对平板玻璃的四条直边及每条边的上下棱边的磨削,抛光,适用于家具,家电,建筑等产业玻璃的批量生产,可以和钢化,夹胶,印花等生产线配套使用。

KST22-4225 Glass Straight-line Double Edger Production Line contains one Automatic Detection Table, one KS2242 Straight-line Double Edger, one KS2225 Straight-line Double Edger, and one Automatic Transfer Table. The controlling system adopts PLC, which allows the machine not only to be operated alone, but also to be operated together. This production line owns stable capacity and high efficiency, and it can accomplish grinding and polishing the four straight edges and the upper and lower arris of them at one time. The production line is suitable for mass production of furniture, home appliances, construction and other industries glass and can also be together used with production lines like tempered, laminated and figured glass.

主要技术参数Main Technical Parameters

速度范围 Range of speed0.5~12m/min
加工最小玻璃尺寸Min. processing glass size300 mm×300 mm
加工最大玻璃尺寸Max. Processing glass size4200 mm×2500 mm
加工玻璃厚度Glass thickness3~25mm
最大倒角宽度Max. Arris width3 mm
移动边开合速度Mobile side speed7m/min
总功率Total power124.58Kw
压缩空气Air pressure0.8MPa/0.6M3/Min
总重Total weight约17000Kg
工作台高度Highness of working table900 ±20mm
