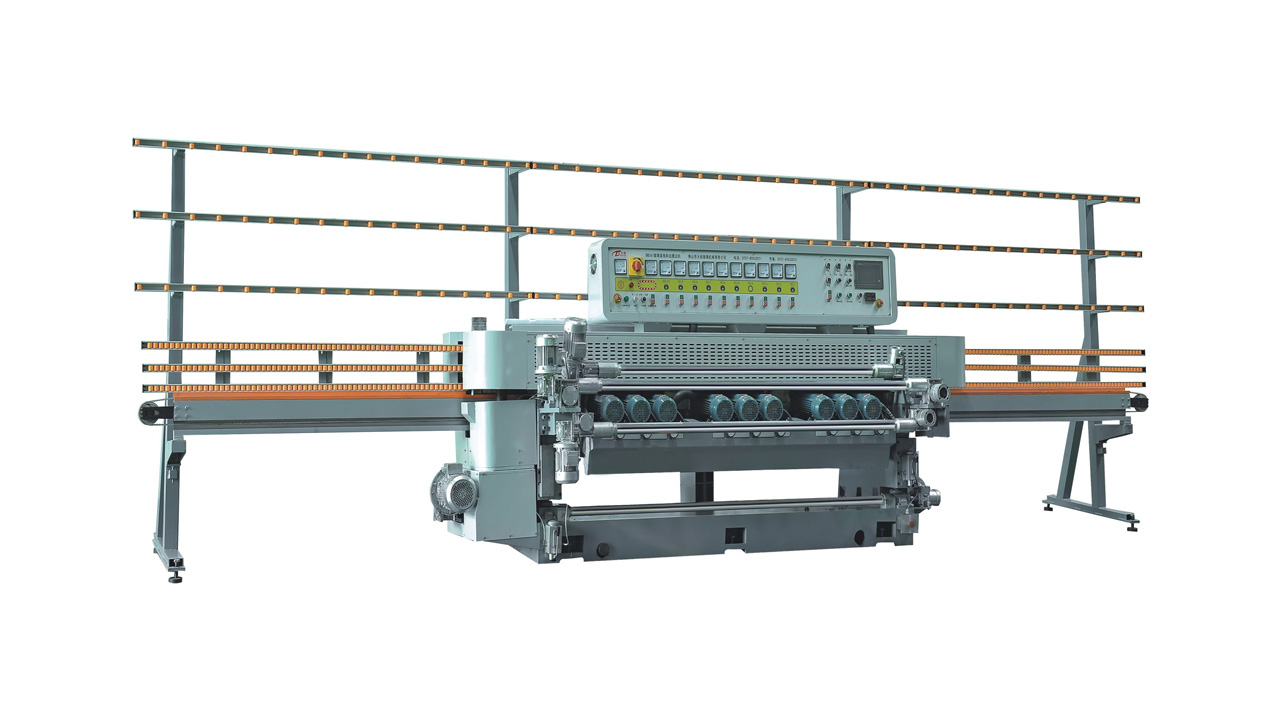

GLASS STRAIGHT LINE BEVELLING MACHINE (OLD)

DB371、DB372、DB381、DB471

玻璃直线斜边磨边机
Glass Straight-line Beveling Machine

该系列机器采用无链条轴承滚动链板结构,磨头可升降,是用于平板玻璃或镜片的斜边及底边的专用设备,其中DB372底边圆边轮2个,一个用于底边粗磨,一个用于底边抛光。该系列机器加工范围广范,最小可磨削25mm×25mm(1″×1″)的小玻璃,最大斜边加工宽度可达60mm(2-3″/8)。控制系统采用PLC控制,可自动、手动转换。人机界面清楚显示玻璃厚度、斜边宽度及角度、剩余玻璃厚度和加工速度等各种参数,参数的输入和修改直观、便捷,自动化程度高。传送速度采用变频调速,主传动电机采用变频电机。能在本机上进行修磨后板,并设有后板自动清洗装置。

This series machine is suitable for grinding bevel and bottom edges of flat glass or mirror. The joint-link adopts chainless ball bearing construction, and the grinding head uses up& down construction. There are two pencil edge wheels for DB372 bottom edge, one is for bottom edge coarse grinding, the other is for bottom edge polishing. With a wide processing range, this series machine’s min. processing glass size is 25mm×25mm(1″×1″), and max. width of bevel can reach 60mm(2-3″/8). The controlling system adopts PLC, which can be operated manually or automatically. The human-machine displays various parameters, such as the glass thickness, bevel width and angle, remaining thickness and processing speed. The transmission speed adopts frequency control. The main driving motor adopts frequency conversion motor. The machine can grind and clean the rear transmitting plate by itself.

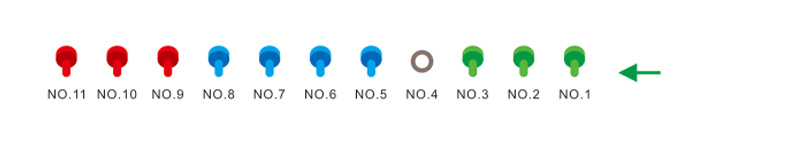

DB371磨轮分布图 Wheels location

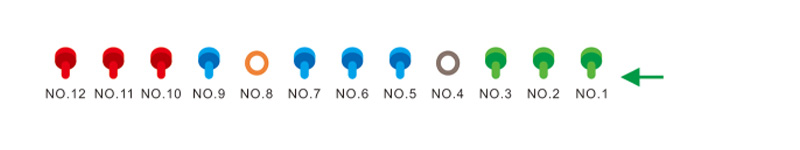

DB372磨轮分布图 Wheels location

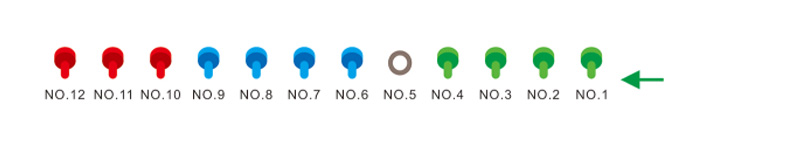

DB381磨轮分布图 Wheels location

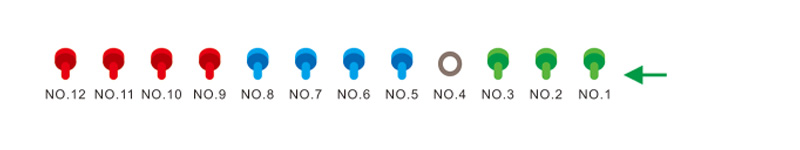

DB471磨轮分布图 Wheels location


主要技术参数  Main Technical Specification

型号 ModelDB371DB372DB381DB471
速度范围
Range of speed
0.5-10m/min0.5-10m/min0.5-10m/min0.5-10m/min
加工玻璃厚度
Glass thickness
3-19mm3-19mm3-19mm3-19mm
最大加工斜边宽度
Max. width of bevel
60mm60mm60mm60mm
最小加工面积
Min. processing glass size
25X25mm25X25mm25X25mm25X25mm
加工斜边角度
Bevel degree
3~4503~4503~4503~450
总功率
Total power
26.69KW28.89KW28.89KW28.19KW
总重量
Total weight
7300Kg7500Kg7500Kg7500Kg
外形尺寸
Overall dimension
8150X1600X2200mm8300X1600X2200mm8300X1600X2200mm8300X1600X2200mm
