Car Rearview Mirror Production Line

汽车后视镜生产线

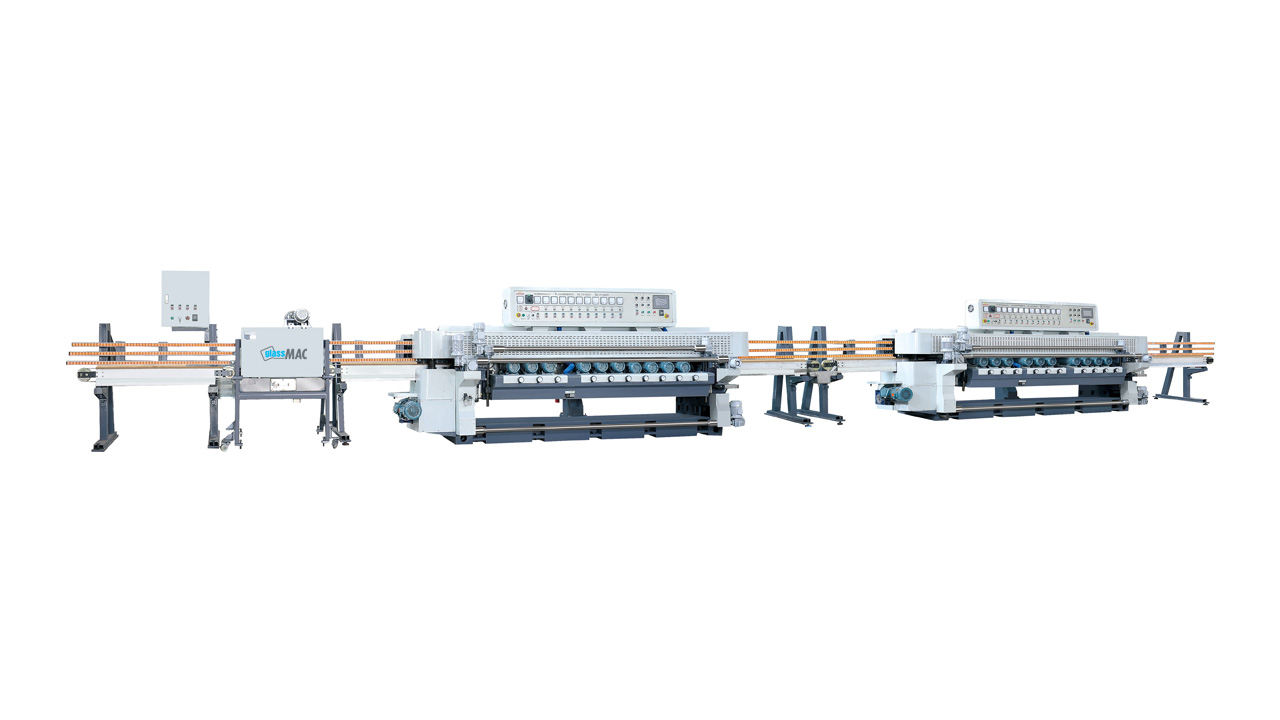

Rearview Mirror Production Line

汽车后视镜生产线是由一台DB11玻璃直线斜边磨边机,一台PG10玻璃直线斜边抛光机及一台DWL300在线立式微型清洗机组成。DB11玻璃直线斜边磨边机及PG10玻璃直线斜边抛光机采用无链条轴承滚动链板结构,传送平稳,运动精度高,控制系统采用PLC控制,可自动、手动转换。人机界面清楚显示玻璃厚度、斜边宽度及角度、剩余玻璃厚度和加工速度等各种参数,参数的输入和修改直观、便捷,自动化程度高。传送速度采用变频调速,主传动电机采用变频电机。能在本机上进行修磨后板,并设有后板自动清洗装置。DWL300在线立式微型清洗机可以直接完成抛光后玻璃的在线清洗,省时省力,极大地提高工作效率。

Rearview Mirror Production Line contains a DB11 PLC Straight-line Beveler,one PG10 Straight-line beveling polishing machine as well as a DWL300 mirco-Vertical Washing&Drying Machine.DB11 PLC Straight-line Beveler and a PG10 glass polishing machine adopts chainless ball bearing construction, for insure smooth transmission, high-precision movement. The controlling system adopts PLC control which can be changed between automaticlly and manually.The human-machine interface can show various parameters clearly,such as the glass thickness, bevel width, angle, remaining thickness and processing speed. The transmission speed adopts frequency control,and main driving motor adopt frequency conversion motor.The machine can grind and clean the rear transmitting plate by itself. DWL300 Vertical Washing&Drying can be completed directly online washing, time-saving and high efficient.

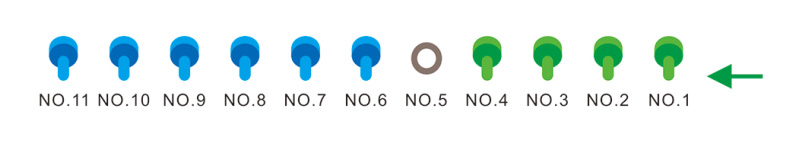

DB11磨轮分布图 wheels location

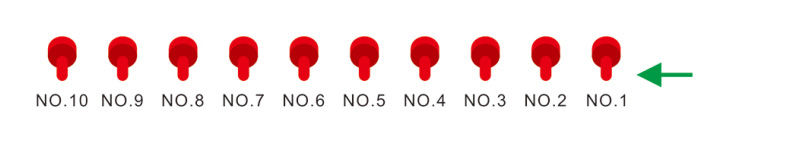

PG10磨轮分布图 wheels location


主要技术参数 Main Technical Parameters

速度范围Range of speed0.4~4m/min
最小加工面积Min. processing glass size300×125mm
加工最大斜边宽度Max. width of bevel80mm
加工玻璃厚度Glass thickness3~19mm
加工斜边角度Bevel degree30~200
总功率Total power50.19Kw
总重量Total weight13000Kg
外箱尺寸Overall dimension16000×1600×2200 mm
