Glass Straight Line Multi-Edge Machine
Glass Straight Line Edging Machine (1)
October 8, 2018
Car Rearview Mirror Production Line
October 8, 2018

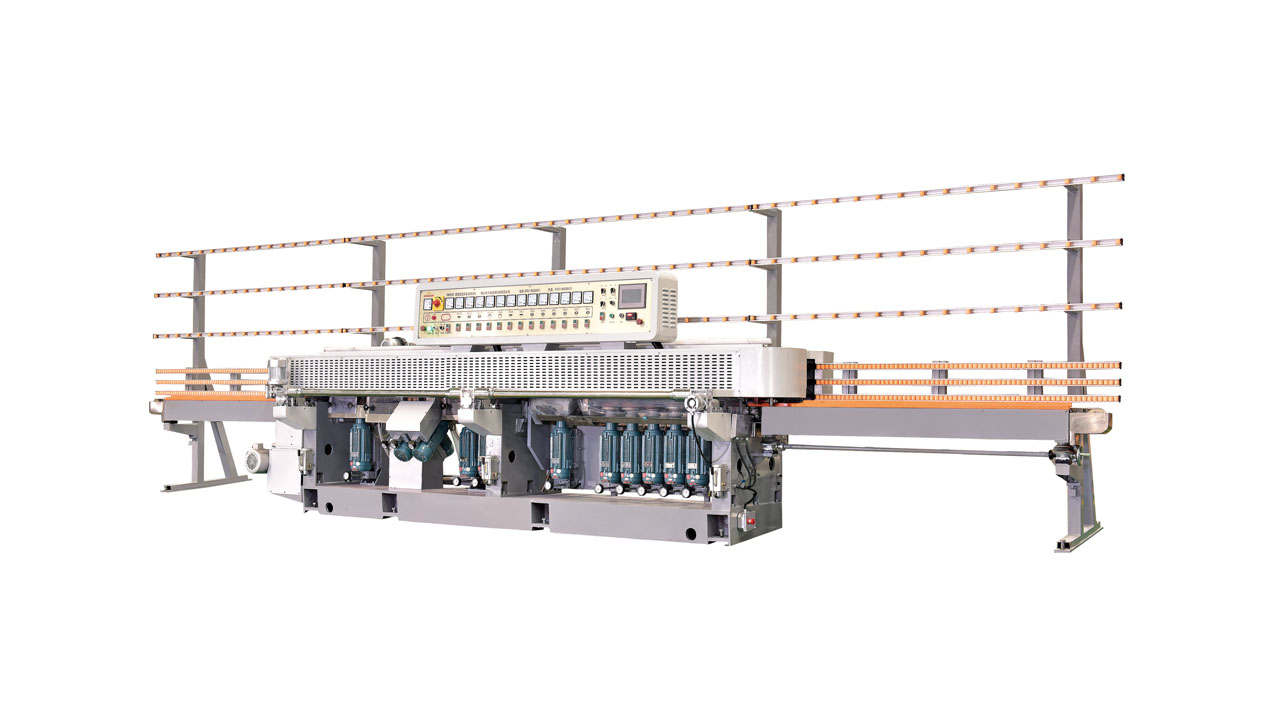

DME6322, DME6122, DME6022, DME7422, DME7033, DME7022, DME8302
玻璃直线多级边磨边机
Glass Straight-line Angle-changing Edging Machine
改系列机器采用无链条轴承滚动链板结构，传送平稳.适用于各种平板玻璃的底边、棱边及级边的磨削和抛光。控制系统采用PLC控制，可自动、手动转换。人机界面清楚显示玻璃厚度、加工速度和机边角度等各种参数,参数的输入和修改直观、便捷，自动化程度高。传送速度采用变频调速，主传动电机采用变频电机。能在本机上进行修磨后板，并设有后板自动清洗装置。输送导轨可升降，方便玻璃切削量的调整。
This series machine adopts chainless ball bearing construction which ensures stable transfer. It is suitable for grinding and polishing bottom edge, arris edge and miter edge of various flat glasses. The control system adopts PLC control which can be changed between automatically and manually. The human-machine interface can show various parameters clearly, such as the glass thickness, edge slope, and processing speed. The transmission speed adopts frequency control, and main driving motor adopts frequency conversion motor.The machine can grind and clean the rear transmitting plate by itself. The transmission guider can lift up and down manually for adjustment of glass grinding.
DME6322磨轮分布图 Wheels Location
DME6122磨轮分布图 Wheels Location
DME6022磨轮分布图 Wheels Location
DME7422磨轮分布图 Wheels Location
DME7033磨轮分布图 Wheels Location
DME7022磨轮分布图 Wheels Location
DME8302磨轮分布图 Wheels Location
主要技术参数 Main Technical Specification
| 型号 Model | DME6322 | DME6122 | DME6022 | DME7422 | DME7033 | DME7022 | DME8302 |
|---|---|---|---|---|---|---|---|
| 速度范围 Range of speed | 0.5-6m/min | 0.5-6m/min | 0.5-6m/min | 0.5-6m/min | 0.5-6m/min | 0.5-6m/min | 0.5-6m/min |
| 加工玻璃厚度 Glass thickness | 3-30mm | 3-30mm | 3-30mm | 3-30mm | 3-30mm | 3-30mm | 3-30mm，特殊定做可达60mm |
| 加工最小玻璃尺寸 Min. processing glass size | 60X60mm | 60X60mm | 60X60mm | 100X100mm | 60X60mm | 60X60mm | 100X100mm |
| 加工级边角度 Edge slope | 0~450，特殊定做可达600 | 0~450 | 0~450 | 0~450，特殊定做可达600 | 0~450，特殊定做可达600 | 0~450 | 0~450，特殊定做可达600 |
| 总功率 Total power | 32.57KW | 28.87KW | 26.67KW | 36.27KW | 30.47KW | 28.179KW | 32.57KW |
| 总重量 Total weight | 6500Kg | 5600Kg | 5500Kg | 6650Kg | 6500Kg | 5600Kg | 6500Kg |
| 外形尺寸 Overall Dimension | 8800 X 1600 X 2200mm | 7800 X 1600 X 2200mm | 7800 X 1600 X 2200mm | 8800 X 1600 X 2200mm | 8800 X 1600 X 2200mm | 7800 X 1600 X 2200mm | 8800 X 1600 X 2200mm |
