KS系列玻璃直线双边磨边机是一种数控型的平板玻璃深加工设备。该系列机器集粗磨、精磨、抛光于一体,一次加工可完成平板玻璃两条直边及其上下棱边的磨削、抛光。并可根据客户要求加配除膜装置或安全倒角装置。该系列机器采用气动补偿抛光系统,抛光性能稳定。磨削玻璃宽度由滚珠丝杠调整,编码器监测,调整宽度精确。采用了先进的PLC控制系统,各种加工参数可在人机界面上设置,省时省力,自动化程度高。
Glass Straight-line double edging machine KS Series is a numerical control equipment which is suitable for flat glass deep-processed. This series machine is a collection of coarse grinding, fine grinding and polishing, and can finish grinding and polishing two straight edges and upper and lower arris edges of flat glass at one time. The machine can also be additionally provided with film-removed device or safety corner device according to customers’ requirement. Grinding glass width adjusted by ball screw, monitored by encoder, the width adjustment is precise. Adopting advanced PLC control system, all parameters can be set in the screen to save time and effort with high automation.

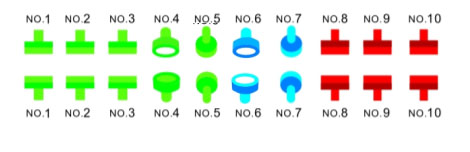

20磨头磨轮分布
20 motors wheels location
22磨头A型(带安全角型)磨轮分布
22 motors wheels location A type (with safety arris device)

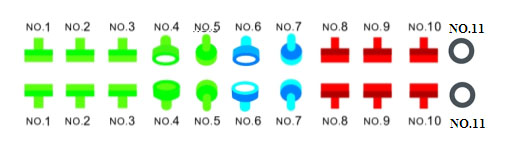

22磨头B型(带除膜型)磨轮分布
22 motors wheels location B type ( with film-removed device)
主要技术参数 Main Technical Parameters
型号Model | KS2016 | KS2020 | KS2025 | KS2030 | KS2042 |
---|---|---|---|---|---|
速度范围 Range of speed | 0.5-12m/min | 0.5-12m/min | 0.5-12m/min | 0.5-12m/min | 0.5-12m/min |
加工玻璃厚度 Glass thickness | 3-25mm | 3-25mm | 3-25mm | 3-25mm | 3-25mm |
最大加工宽度 Max.Processing Glass width | 1600mm | 2000mm | 2500mm | 3000mm | 4200mm |
最小加工面积 Min.Processing glass size | 300*300mm, 特殊定制可达130*130mm | 300*300mm, 特 殊定制可达150*150mm | 300*300mm, 特 殊定制可达200*200mm | 300*300mm | 300*300mm |
最大倒角宽度 Max.arris width | 3mm | 3mm | 3mm | 3mm | 3mm |
移动边开合速度 Mobile side speed | 7m/min | 7m/min | 7m/min | 7m/min | 7m/min |
压缩空气 Air pressure | 0.8Mpa/0.6 m³/min | 0.8Mpa/0.6 m³/min | 0.8Mpa/0.6 m³/min | 0.8Mpa/0.6 m³/min | 0.8Mpa/0.6 m³/min |
总功率 total power | 50.59KW | 50.59KW | 50.59KW | 50.59KW | 50.59KW |
总重量 Total weight | 5700Kg | 5900Kg | 6200Kg | 6500Kg | 7200Kg |
外形尺寸 Overall dimension | 3700*5080* 2000mm | 4100*5080* 2000mm | 4600*5080* 2000mm | 5100*5080* 2000mm | 6300*5080* 2000mm |
型号Model | KS2216A/B | KS2220A/B | KS2225A/B | KS2230A/B | KS2242A/B |
---|---|---|---|---|---|
速度范围 Range of speed | 0.5-12m/min | 0.5-12m/min | 0.5-12m/min | 0.5-12m/min | 0.5-12m/min |
加工玻璃厚度 Glass thickness | 3-25mm | 3-25mm | 3-25mm | 3-25mm | 3-25mm |
最大加工宽度 Max.Processing Glass width | 1600mm | 2000mm | 2500mm | 3000mm | 4200mm |
最小加工面积 Min.Processing glass size | 300*300mm | 300*300mm | 300*300mm | 300*300mm | 300*300mm |
最大倒角宽度 Max.arris width | 3mm | 3mm | 3mm | 3mm | 3mm |
移动边开合速度 Mobile side speed | 7m/min | 7m/min | 7m/min | 7m/min | 7m/min |
压缩空气 Air pressure | 0.8Mpa/0.6 m³/min | 0.8Mpa/0.6 m³/min | 0.8Mpa/0.6 m³/min | 0.8Mpa/0.6 m³/min | 0.8Mpa/0.6 m³/min |
总功率 total power | 51.69/55KW | 51.69/55KW | 51.69/55KW | 51.69/55KW | 51.69/55KW |
总重量 Total weight | 6100Kg | 6300Kg | 6600Kg | 6900Kg | 7600Kg |
外形尺寸 Overall dimension | 3700*5480* 2000mm | 4100*5480* 2000mm | 4600*5480* 2000mm | 5100*5480* 2000mm | 6300*5480* 2000mm |
