GM1321

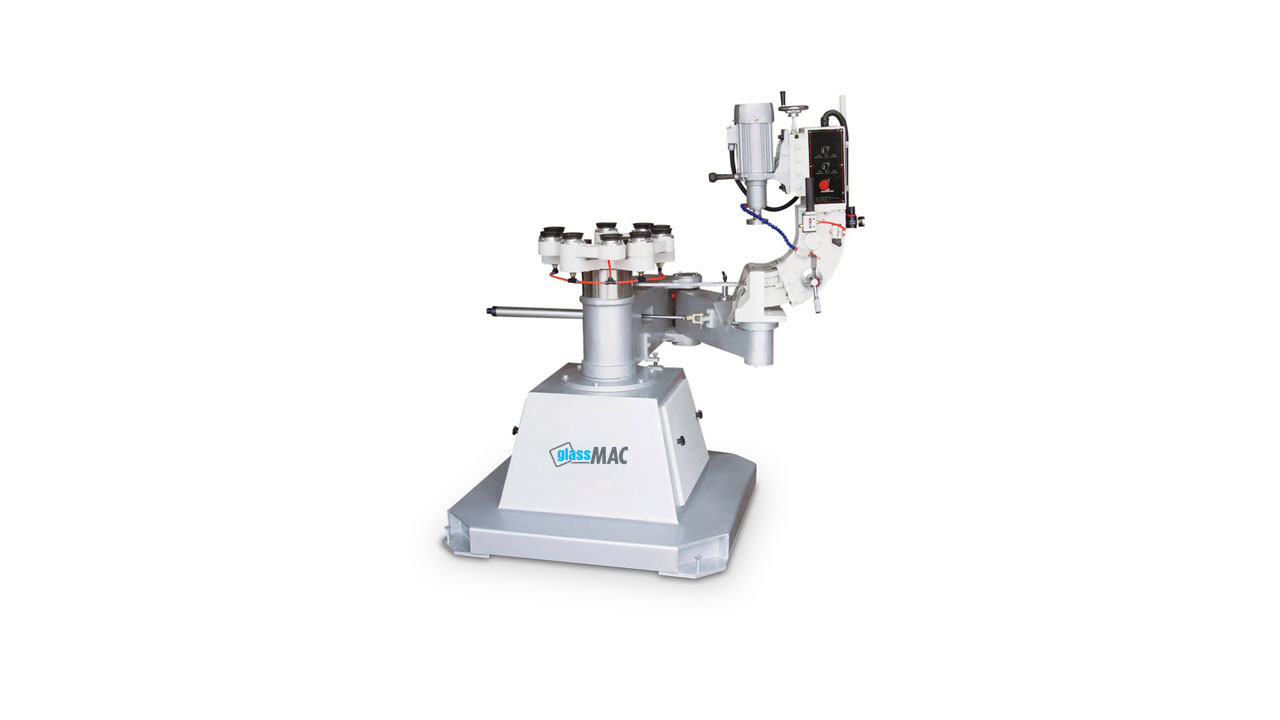

GM1321 Glass Shape Beveling Machine

*Technical Parameters
Features
  • The machine is suitable for grinding and polishing exterior edge of shaped glass. By changing grinding wheel of different shape, flat edge with arris, pencil edge, bevel edge and OG edge can be processed. The height of spindle can be adjusted easily. The pneumatic cylinder makes it possible that round and simple shape glass can be processed automatically.
  • Motor, stepless regulator, worm gear are installed in the house of the base. Speed is adjusted through stepless regulator.

Technical Specification:

Bevel Angle0°- 20°
Glass Thickness

3mm-21mm

Glass Rotation Diameter

400-2100mm

Max. Bevel Width35mm
Working Table Rotation Speed0.8-4 r/min
Single Suction Disk Rotation Speed1.2-6 r/min
Total Power2.6kw
