DE363 Straight Line Edger

DE252、DE262、DE272

玻璃直线直边磨边机
Glass Straight-line Edging Machine

改系列机器采用无链条轴承滚动链板结构,传送平稳。适用于各种平板玻璃的底边、棱边的磨削和抛光。控制系统采用PLC控制,可自动、手动转换。人机界面清楚显示玻璃厚度和加工速度等各种参数,参数的输入和修改直观、便捷,自动化程度高。传送速度采用变频调速,主传动电机采用变频电机。能在本机上进行修磨后板,并设有后板自动清洗装置。输送导轨可升降,方便玻璃切削量的调整。

This series machine adopts chainless ball bearing construction which ensures stable transfer. It is suitable for bottom edge and arris edge’s grinding and polishing of various flat glasses. The controlling system adopts PLC, which can be operated between manually and automatically. The human-machine displays various parameters, such as the glass thickness and processing speed.The transmission speed adopts frequency control, and the main driving motor adopts frequency conversion motor. The machine can grind and clean the rear transmitting plate by itself. The convey guider can lift up/down manually for adjustment of glass grinding.

主要技术参数 Main Technical Specification

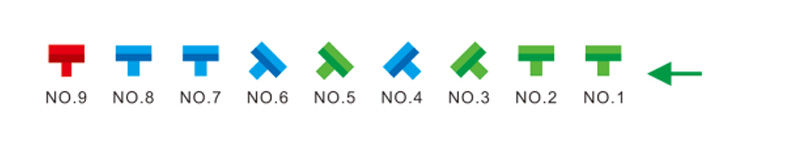

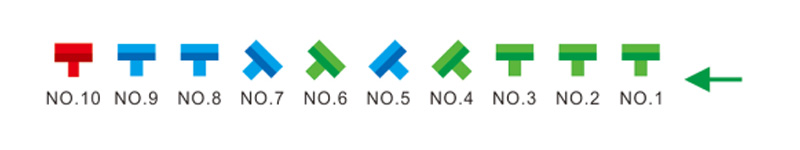

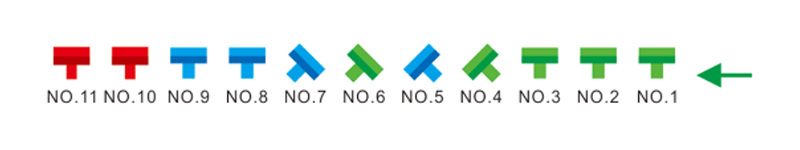

型号ModelDE252DE262DE272
速度范围
Range of speed
0.5-6m/min0.5-6m/min0.5-6m/min
加工玻璃厚度
Glass thickness
3-30mm3-30mm3-30mm,特殊定做可达40mm
加工最小玻璃宽度
Min. processing width
20mm20mm20mm
总功率
Total power
23.57KW25.87KW27.37KW
总重量
Total weight
4800Kg5000Kg5800Kg
外形尺寸
Overall dimension
7650X1600X2200mm7800X1600X2200mm8000X1600X2200mm
