GM080

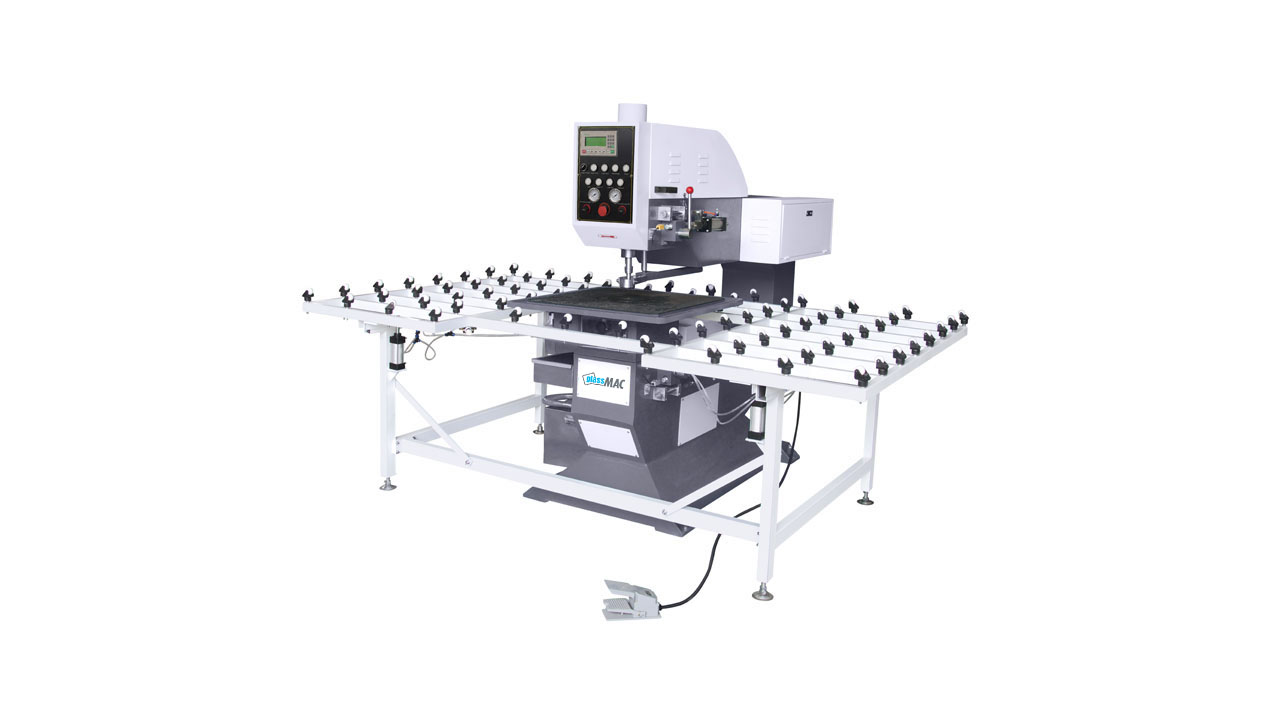

GM080 AUTOMATIC GLASS DRILLING MACHINE

* TECHNICAL PARAMTERS
  • The machine has 2 working spindles, working the 2 surface of glass.
  • The machine can work in manual mode and automatic mode. In manual mode, the machine only work one cycle when press start button. In automatic mode, the machine works continuously without pressing the button, when in automatic mode, it controlled by PLC, and laser positioning.
  • This machine adopt time relay controller and oil buff technology.
  • The centering of drill hole can be positioned by means of mechanical method or laser.
  • Pneumatic clamper grip glass with adjustable pressure.
  • The machine is featured by its high working efficiency, low glass damage and easy operation.

Technical Specification:

Diameter of drilling hole4-80mm
Glass thickness3-30mm
Total Power2.85Kw
Drilling Depth1250mm
Weight1000kg
Overall dimension2.15m x 2.5m x 1.75m
