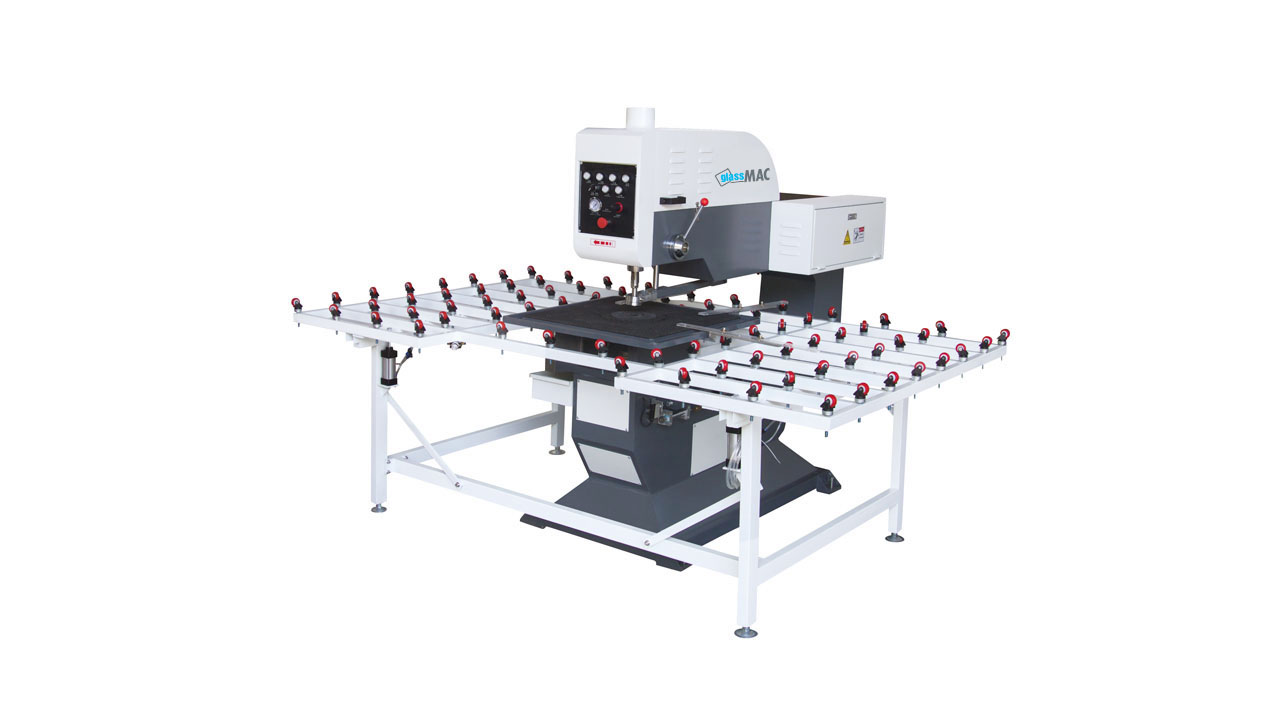

GM0222 GLASS DRILLING MACHINE

*TECHNICAL PARAMETER
  • The machine has 2 working spindles, working the 2 surface of glass
  • The machine can work in manual mode. In manual mode, the machine only work one cycle when press start button.
  • This machine adopt time relay controller and oil buff technology.
  • The centering of drill hole can be positioned by means of mechanical method or laser.
  • Pneumatic clamper grip glass with adjustable pressure.
  • The machine is featured by its high working efficiency, low glass damage and easy operation.

Technical Specification:

Diameter of drilling hole4-220mm
Glass thickness3-30mm
Total Power2.35Kw
Drilling Depth1250mm
Weight800kg
Overall dimension2.2m x 2.7m x 1.7m
